Description

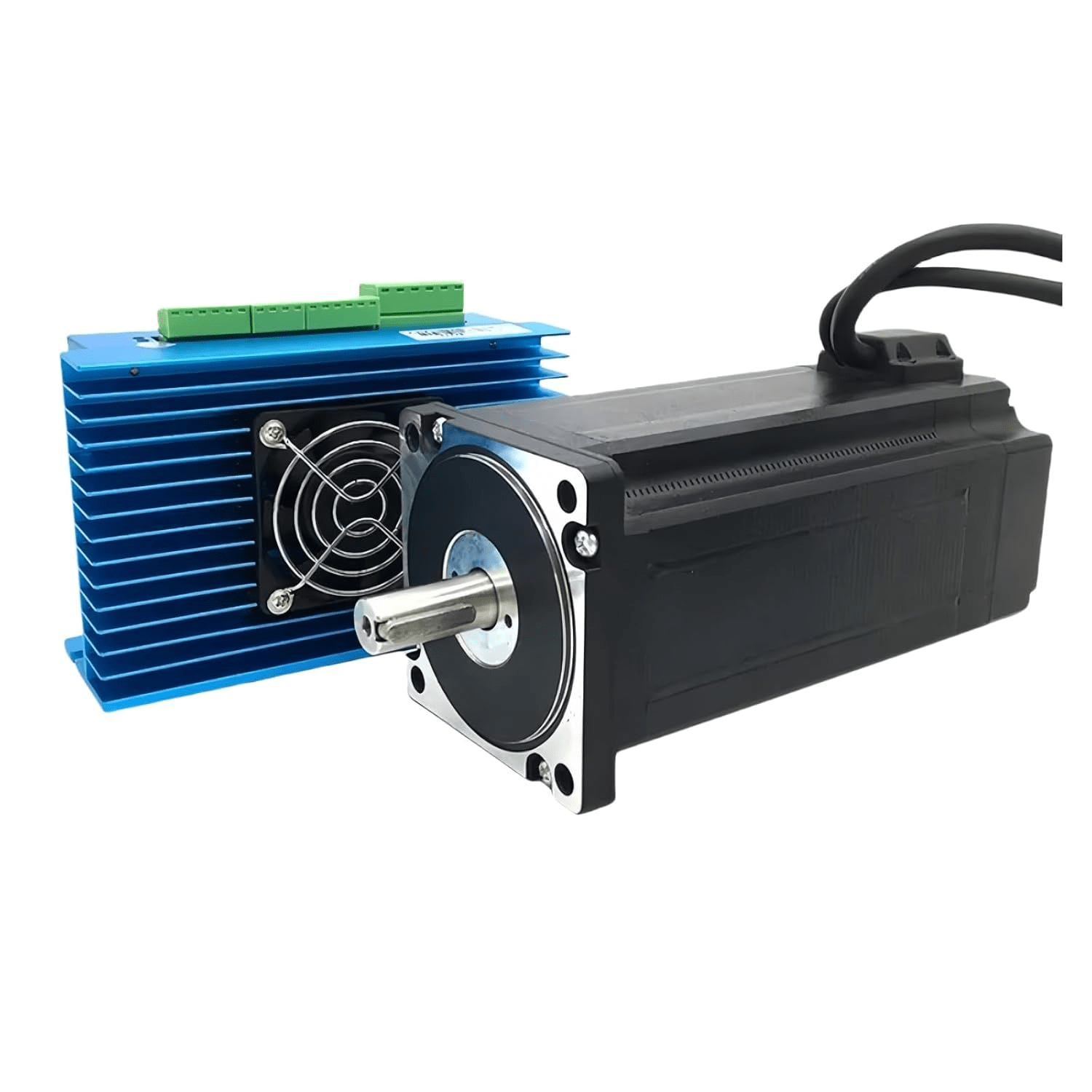

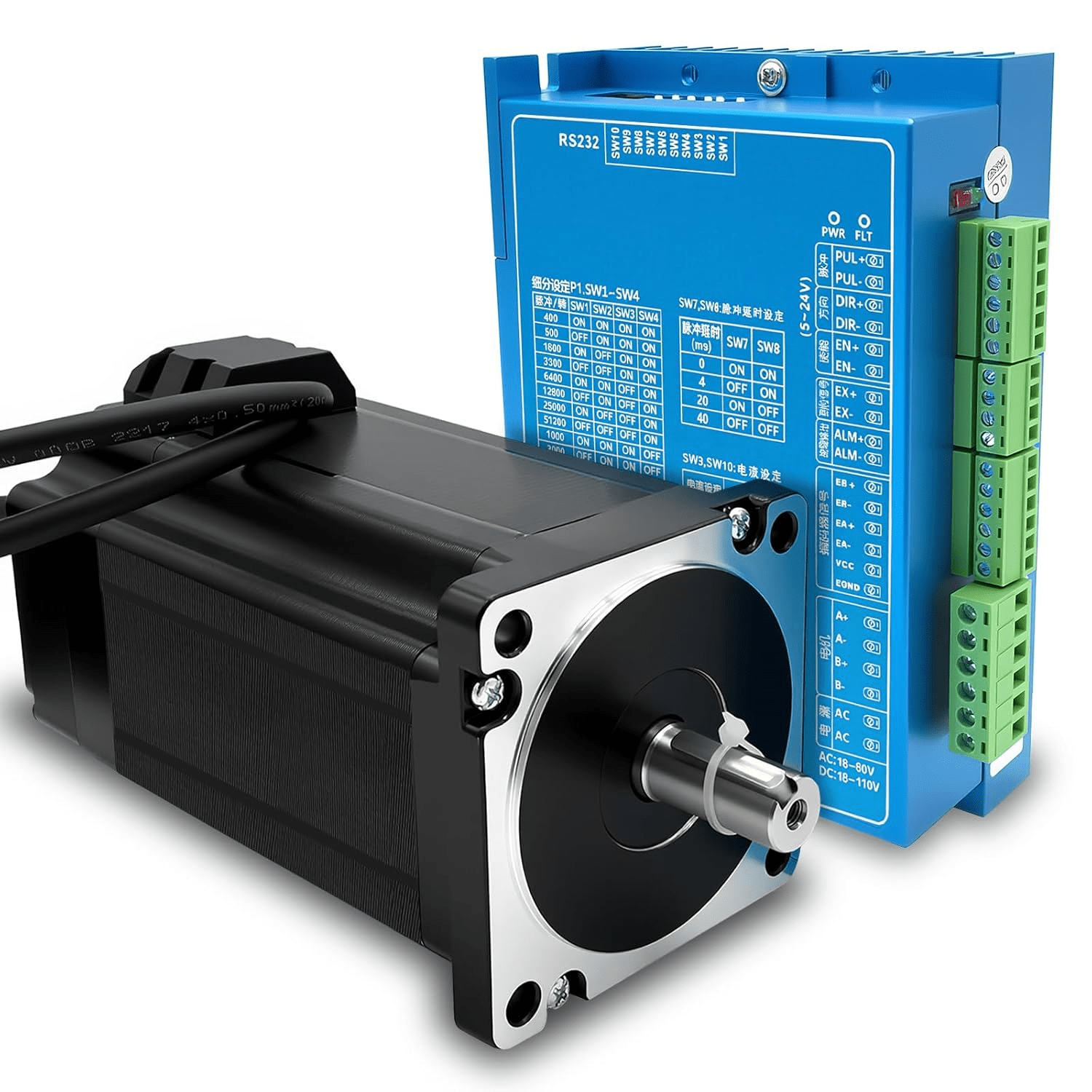

- Items Included in Kit: 1 x 86HB250-156B Closed Loop Stepper Motor, 1 x HBS86H Closed Loop Stepper Motor Driver, 1 x Debugging Cable, 1 x 3m Motor and Encoder Extension Cables.

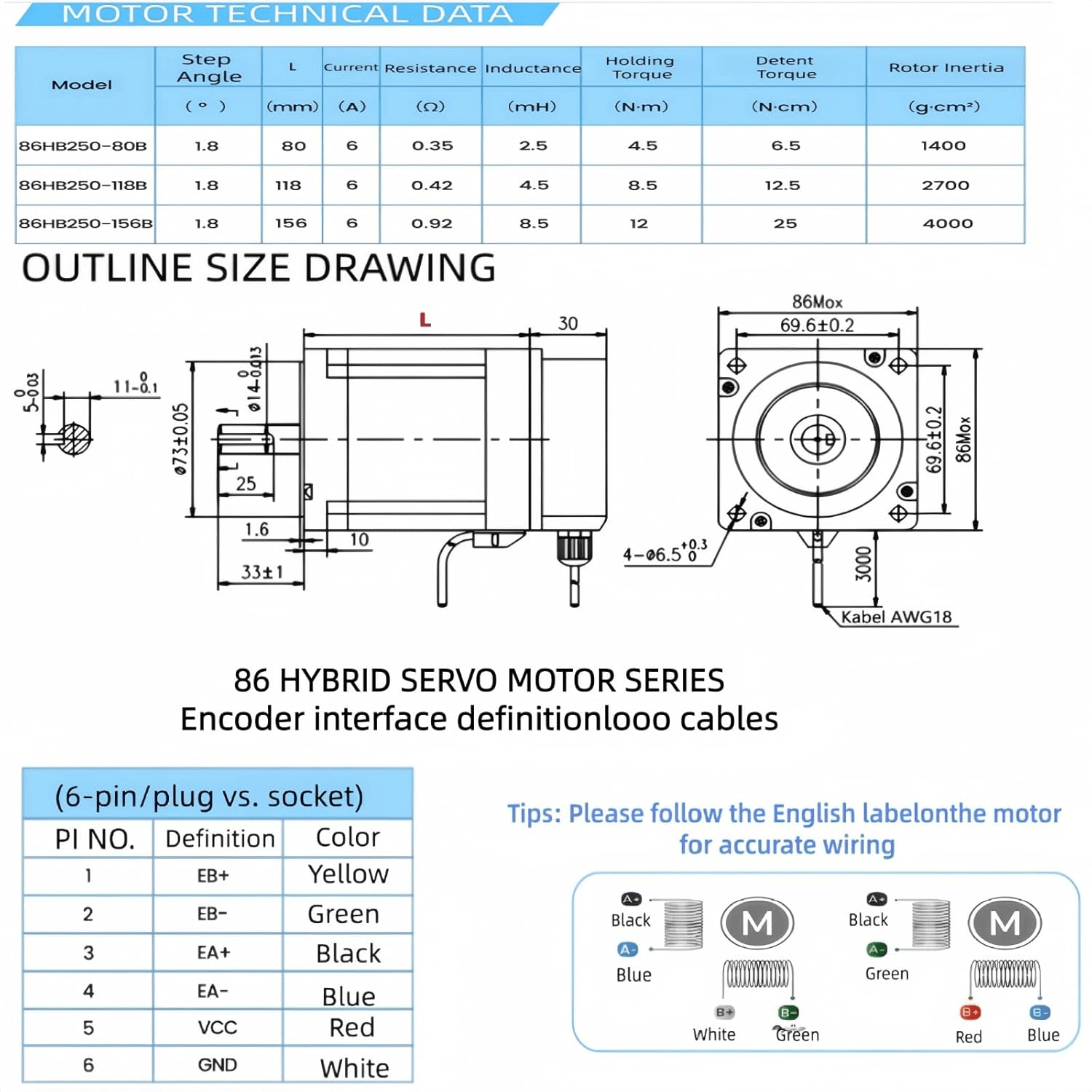

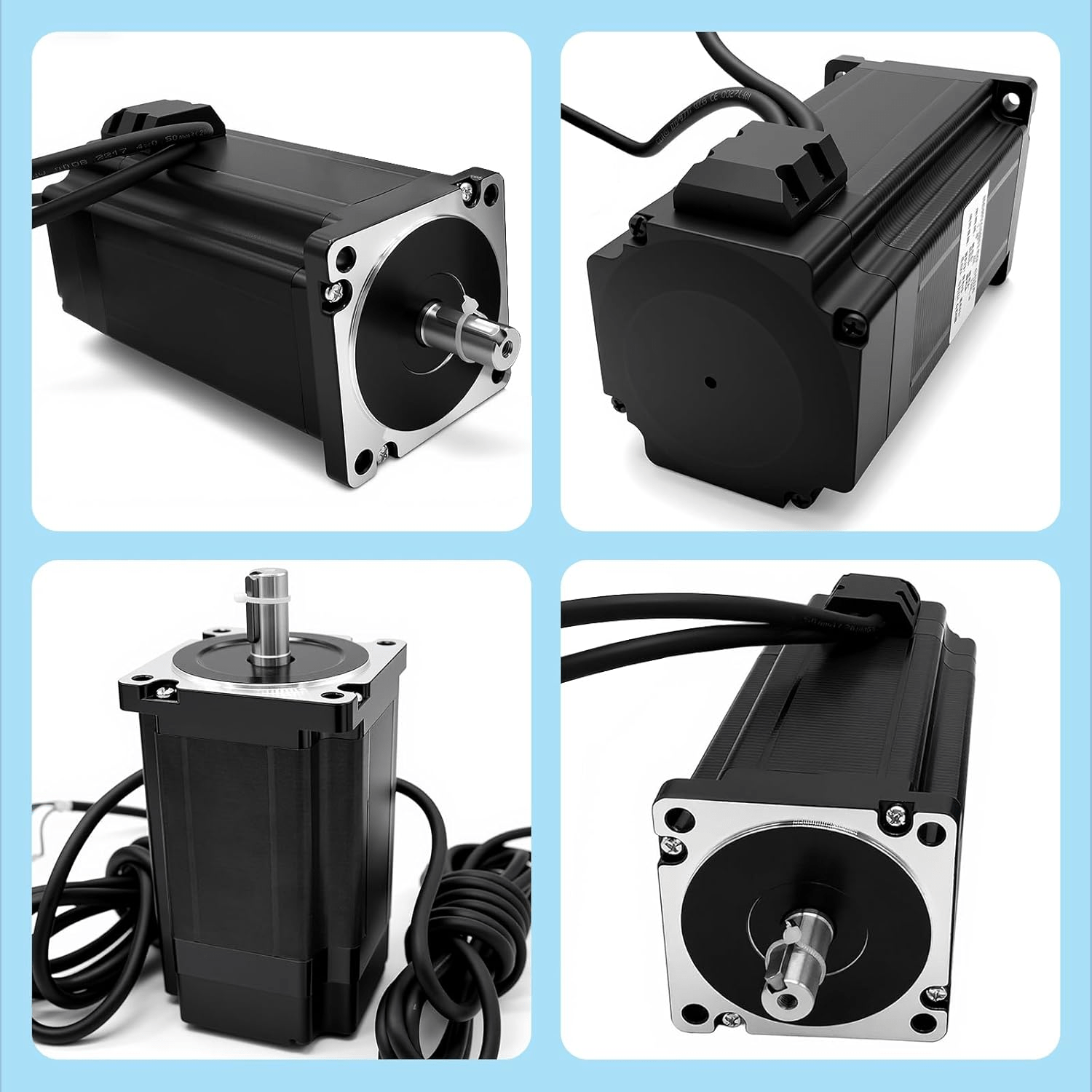

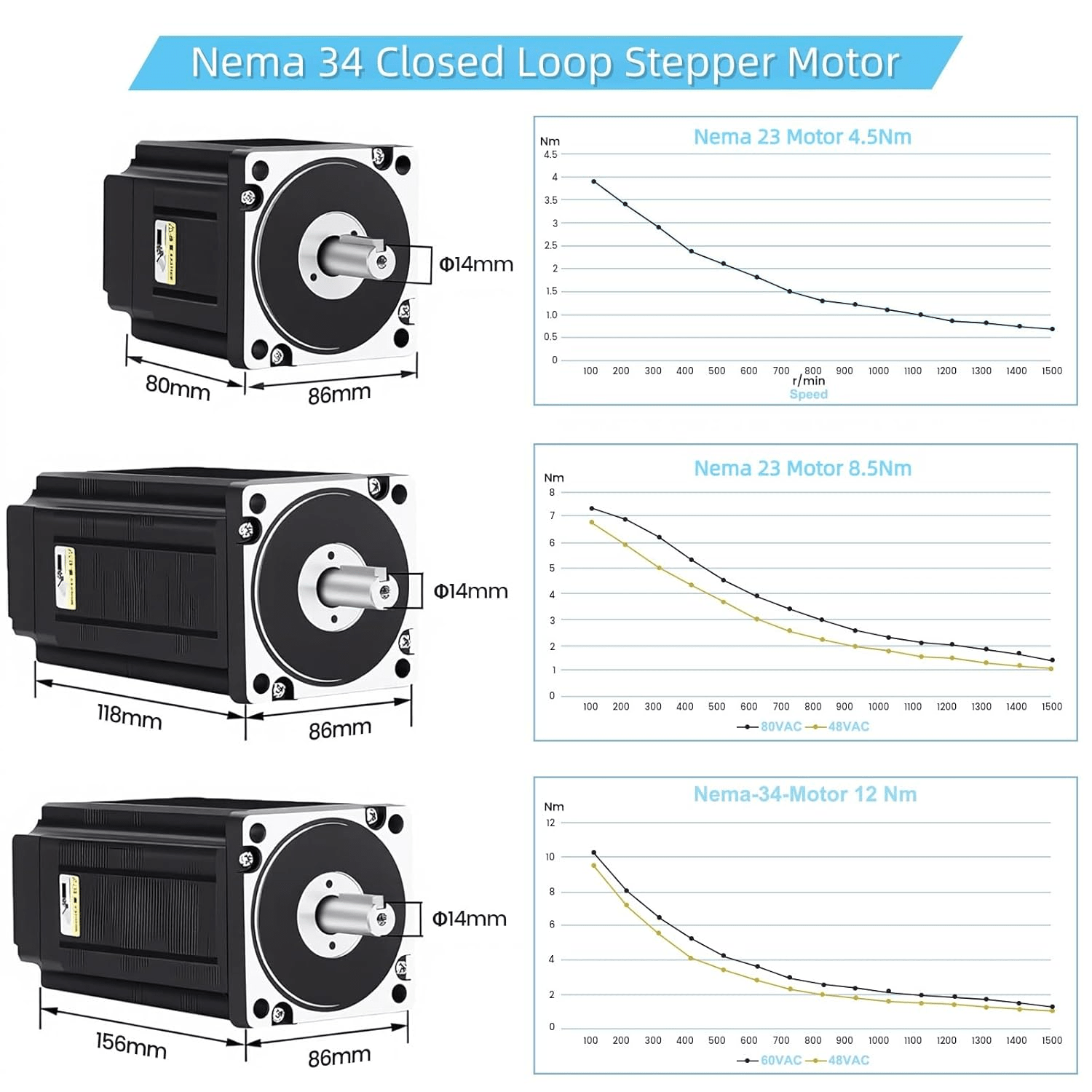

- Specifications: Holding Torque: 12Nm / 1200Ncm; Dimensions: 86x86x156mm (3.38″ x 3.38″ x 6.14″); Step Angle: 1.8 degrees; Encoder Resolution: 1000; Current: 4A; Phase Count: 2; Inductance: 6 mH; Resistance: 0.92 Ohm.

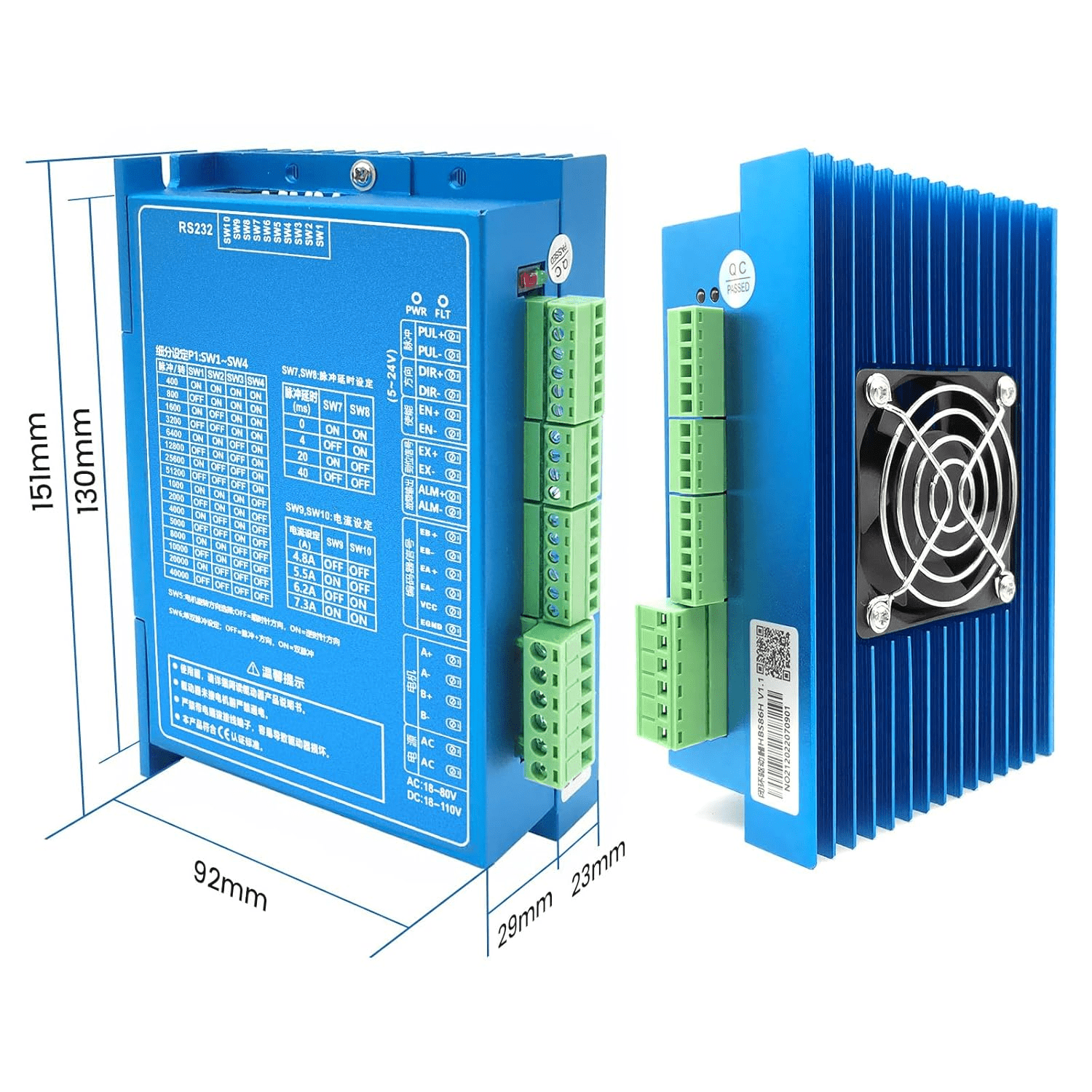

- Driver Parameters: Type: DSP Closed Loop Stepper Drive; Maximum Peak Current: 8A; Input Voltage: 20~80 V AC / 30-110 V DC; Micro-Stepping Range: 200~25200 ppr; Cooling Type: Forced Air Cooling; Logic Signal Current: 7-16 mA.
- Advantages: This closed-loop stepper motor system ensures that the motor never loses steps. The in-built encoder technology enhances the accuracy, torque output, and operational speed of the motor. It also includes multiple protective features such as over-current protection, over-voltage protection, and position tolerance safeguarding.
- Applications: The Nema 34 Closed Loop Stepper Motor Kit is ideal for a variety of small to medium-sized automation equipment, including 3D printers, CNC machines, milling and carving machines, industrial sewing machines, marking machines, and automatic assembly equipment, making it incredibly versatile for various engineering tasks.
Product Overview
The Nema34 86Mm Closed Loop Stepper Motor Kit represents an advanced solution in motion control technology. Featuring a robust 12Nm holding torque, this stepper motor is designed for precision applications across various sectors. The closed-loop design is instrumental in preventing lost steps, ensuring reliable operation even under adverse conditions. The system easily integrates into your existing setup, providing you with the tools needed to enhance performance, scale production, or innovate your machinery with minimal hassle.
Installation and setup are straightforward with the included debugging cable and extension cables, allowing for versatile placements within your project. The HBS86H driver that accompanies the motor further facilitates superior control features, ensuring that your applications run smoothly. Whether you’re operating in a workshop or a full production environment, this motor, coupled with its driver, opens the door to exceptional reliability and operational speed.
